Heavy Load 30 Ton Remote Control Trackless Automatic Guided Vehicle

  • Heavy Load 30 Ton Remote Control Trackless Automatic Guided Vehicle
  • Heavy Load 30 Ton Remote Control Trackless Automatic Guided Vehicle
  • Heavy Load 30 Ton Remote Control Trackless Automatic Guided Vehicle
  • Heavy Load 30 Ton Remote Control Trackless Automatic Guided Vehicle
Menşe yeri Henan, Çin
Marka adı BEFANBY
Sertifika CE,SGS,ISO9001
Model numarası rgv
Min sipariş miktarı 1 set/set
Fiyat Anlaşılabilir
Ambalaj bilgileri Transfer arabası muşamba tarafından paketlenecek, parçalar yüksek kaliteli ahşap kasa olarak paketle
Teslim süresi Her zamanki teslimat olarak 20-30 gün
Ödeme koşulları L/C, T/T, Western Union
Yetenek temini Yıllık 1500 set/set

Ücretsiz numune ve kuponlar için bana ulaşın.

Naber:0086 18588475571

sohbet: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
Renk özelleştirilmiş Garanti 24 ay
Yük kapasitesi özelleştirilmiş Güç kaynağı Pil çalıştırıldı
Liman Qingdao/Tianjin/Shanghai Başvuru Hava Çalışma, Fabrika, Çalıştay, Şantiyede
Malzeme Çelik
Mesaj bırakın
Ürün Açıklaması

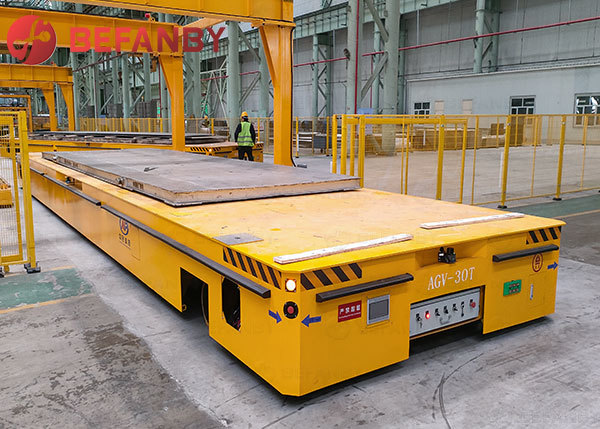

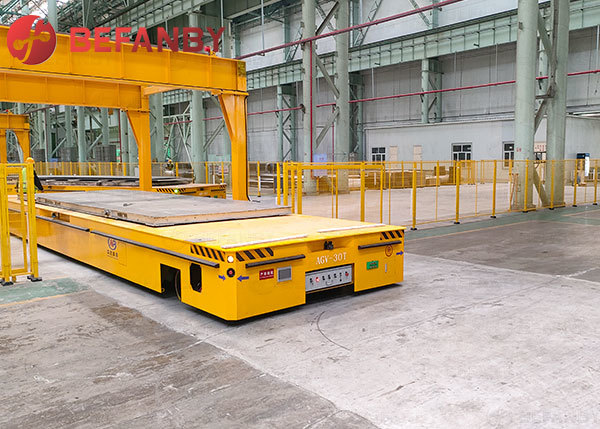

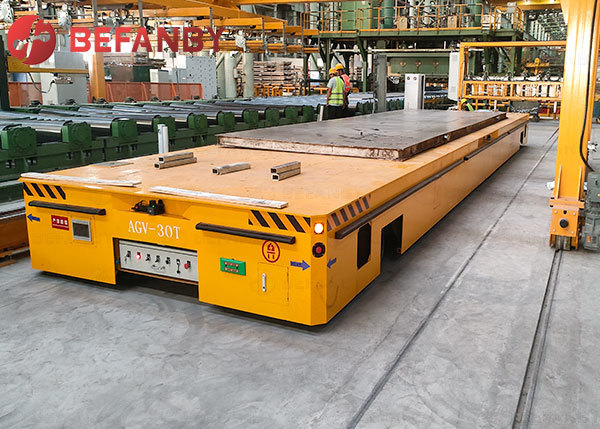

Heavy Load 30 Ton Remote Control Trackless Automatic Guided Vehicle

Product Description

The AGV intelligent trackless transfer cart is an intelligent transport device designed specifically for semi-automated factories. With a single vehicle capacity of up to 30 tons, it can handle the transportation needs of steel, aluminum ingots, large equipment, and heavy objects on production lines. The transfer utilizes various intelligent navigation systems (customizable based on actual working conditions) for route planning and automated operation. Without the need for track, it offers flexible operation and is suitable for a variety of complex factories and warehouses.

Safety protection and buffering devices are installed on all sides of the vehicle to effectively reduce collision impact in emergencies, ensuring the safety of equipment and personnel. It also features an emergency stop system and an automatic stop function for personnel, providing comprehensive safety protection


Heavy Load 30 Ton Remote Control Trackless Automatic Guided Vehicle 0




Navigation method

Heavy Load 30 Ton Remote Control Trackless Automatic Guided Vehicle 1


Product Parameter

Model KPX-10t KPX-16t KPX-25t KPX-30t KPX-40t KPX-50t KPX-63t KPX-80t KPX-100t KPX-150t
Rated Load 10 16 25 30 40 50 63 80 100 150
Table size Length(L) 3600 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 2000 2000 2200 2200 2500 2500 2500 2600 2800 3000
Height(H) 500 550 600 600 650 650 700 800 900 1200
Wheel Base 2600 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauage 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter 300 350 400 400 500 500 600 600 600 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 8
Ground Clearance 50 50 50 50 50 50 75 75 75 75
Running Speed 25 20 20 20 20 20 20 20 20 18
Motor Power 2 2.2 3.5 4 5 6.3 8 10 15 15
Battery Capacity 160 180 250 250 300 330 400 400 440 600
Battery Voltage 48 48 48 48 48 48 48 72 72 72
Max Wheel Load 42.6 64.5 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Weight 4.2 5.5 6.5 6.8 7.6 8 10.8 12.8 14.6 26.8


Company Profile

Heavy Load 30 Ton Remote Control Trackless Automatic Guided Vehicle 2

Heavy Load 30 Ton Remote Control Trackless Automatic Guided Vehicle 3

Heavy Load 30 Ton Remote Control Trackless Automatic Guided Vehicle 4

Product Feature

Heavy-Duty Capacity: Maximum load capacity of 30 tons, meeting the needs of efficient transport of large and heavy materials.

Intelligent Navigation: Supports multiple navigation methods, including laser, magnetic stripe/pin, and QR code, for precise and flexible operation.

Safety Protection: Cushioned protection is installed on all four sides of the vehicle, along with an emergency stop button and sensor protection system.

Flexible Operation: No tracks are required, allowing for free straight and turning maneuvers, adapting to complex routes.

Energy-Saving and Environmentally Friendly: Battery-powered, low-noise, zero-emission, suitable for a variety of indoor and outdoor applications.

Customizable: Vehicle dimensions, platform structure, and functional modules can be customized to meet customer needs.

Heavy Load 30 Ton Remote Control Trackless Automatic Guided Vehicle 5
