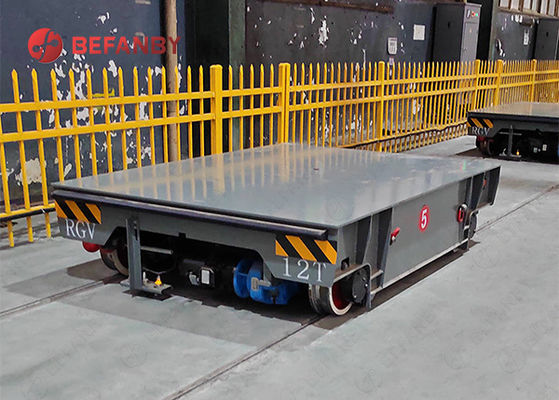

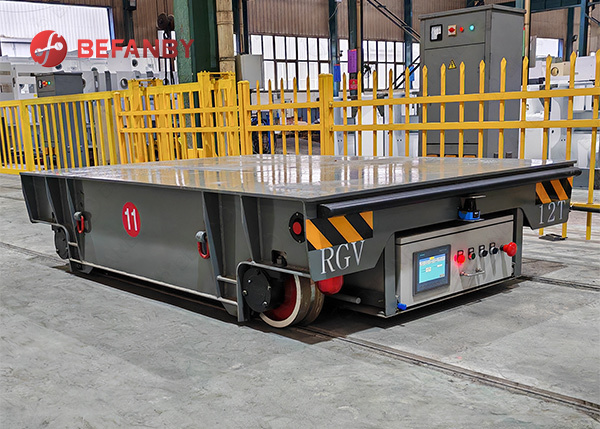

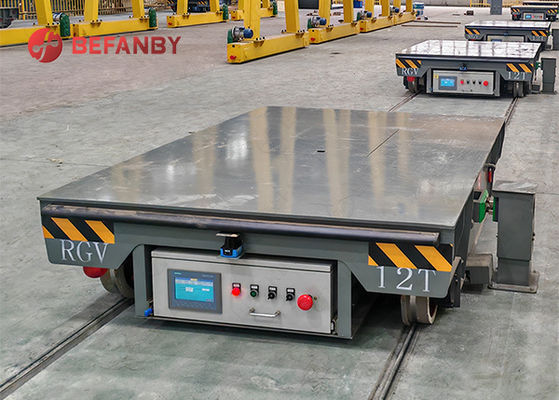

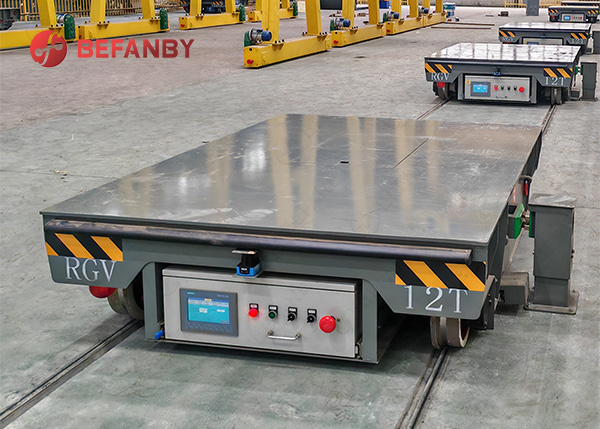

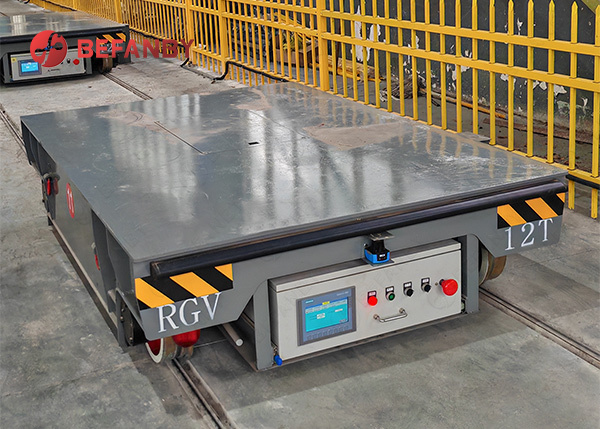

12 Ton With Intelligent Electrical Box RGV Robot Transfer Cart

  • 12 Ton With Intelligent Electrical Box RGV Robot Transfer Cart
  • 12 Ton With Intelligent Electrical Box RGV Robot Transfer Cart
  • 12 Ton With Intelligent Electrical Box RGV Robot Transfer Cart
  • 12 Ton With Intelligent Electrical Box RGV Robot Transfer Cart
  • 12 Ton With Intelligent Electrical Box RGV Robot Transfer Cart
Menşe yeri Henan, Çin
Marka adı BEFANBY
Sertifika CE,SGS,ISO9001
Model numarası rgv
Min sipariş miktarı 1 Takım/Takım
Fiyat Anlaşılabilir
Ambalaj bilgileri Elektrikli düz otomobil fabrikası muşamba tarafından paketlenecek, parçalar yüksek kaliteli ahşap ka
Teslim süresi Her zamanki teslimat olarak 20-30 gün
Ödeme koşulları L/C,T/T,Western Union
Yetenek temini Yılda 1000 set/set

Ücretsiz numune ve kuponlar için bana ulaşın.

Naber:0086 18588475571

sohbet: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
Malzeme S235 Koşu Hızı 0-20 m/dak
Koşu mesafesi Müşteri talebine göre Garanti 18 ay
Yük Kapasitesi 1-1000T Başvuru Endüstriyel alan, çelik demir işleme, malzeme taşıma ekipmanları
Liman Qingdao/Tianjin/Shanghai Renk Özelleştirilmiş
Güç Kaynağı Pil Güç Kaynağı Operasyon türü El asılı + uzaktan kumanda
ray ve tekerlek Yalıtımlı malzeme eklenecek
Mesaj bırakın
Ürün Açıklaması
12 Ton With Intelligent Electrical Box RGV Robot Transfer Cart

1. Product Introduce

flat carts power supply system custom manufacture flat cars

The RGV (Rail Guide Vehicle) intelligent rail transport vehicle is suitable for both indoor and outdoor operation in factories, enabling intelligent scheduling across multiple workstations and production lines, providing enterprises with a more efficient, safer, and more flexible material handling solution.

01 Intelligent Operation Control

The RGV is equipped with an advanced intelligent control system, and the track route can be customized according to customer requirements. It features precise stopping and bidirectional operation. It supports multi-point production line fixed-point stopping, enabling fully automated scheduling and significantly improving production line collaboration efficiency.

factory manufacturer flat cars custom manufacture flat carts high speed rail factory manufacturer flat cars custom manufacture flat carts high speed rail

Please contact us if you's like to learn more details and get the quotation.


BEFANBY have over 16 years' experience in the material handling fields.



12 Ton With Intelligent Electrical Box RGV Robot Transfer Cart 0

12 Ton With Intelligent Electrical Box RGV Robot Transfer Cart 1

2.Appliacations


12 Ton With Intelligent Electrical Box RGV Robot Transfer Cart 2

flat carts power supply system custom manufacture flat cars

3. Befanby Material Handling Equipment Introduce

factory manufacturer flat cars custom manufacture flat carts high speed rail

The transfer carts factory manufacturer material handling equipment used in warehouses used to carry heavy objects in the workshop. Generally speaking, the driving behavior on the track is limited. In order to solve these problems, Xinxiang Hundred Percent Electrical And Mechanical Co., Ltd. has developed non-standard vehicles such as turntables, turning vehicles, and shuttle vehicles to assist in the use. Industrial rail flat cars are powered by KPX battery, KPD low-voltage rail power supply, KPJ cable reel power supply and KPC trolley line power supply; the track laying requirements of rail flat cars need to be appropriately based on power supply and factory conditions, such as low voltage Rail power supply requires insulation treatment; high temperature resistance treatment is required under high temperature conditions. In addition, the customization of industrial rail cars needs to be customized according to the specific needs of users, and the size of the design needs to be calculated by the technicians for the load.

12 Ton With Intelligent Electrical Box RGV Robot Transfer Cart 3


Welcome to inquiry us if you'd like to learn more

4. Technique Parameter
Model KPD-2t KPD-5t KPD-10t KPD-16t KPD-20t KPD-25t KPD-30t KPD-40t KPD-50t KPD-63t
Rated load 2 5 10 16 20 25 30 40 50 63
Table size Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500
Height(H) 450 450 500 500 550 600 600 650 650 750
Wheel Base 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300
Rail Inner Gauage 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435
Wheel Diameter 270 300 300 350 350 400 400 500 500 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 4
Ground Clearance 50 50 50 50 50 50 50 50 50 75
Running Speed 0-25 0-25 0-25 0-20 0-20 0-20 0-20 0-20 0-20 0-20
Motor Power 1 1.2 1.6 2 2.2 3 3.5 4 5 6.3
Transformer Power 3 5 5 6.8 6.8 6.8 10 10 10 20
Transformer Quatity 1 1 1 1 1 1 1 1 1 1
Running Distance 80 80 80 80 80 80 80 60 50 50
Max Wheel Load 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4
Reference Weight 2.8 3.6 4.2 5.5 5.9 6.5 6.8 7.6 8 10.8
Recommended Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50



Our Advantages


12 Ton With Intelligent Electrical Box RGV Robot Transfer Cart 4


Our Company

12 Ton With Intelligent Electrical Box RGV Robot Transfer Cart 5

12 Ton With Intelligent Electrical Box RGV Robot Transfer Cart 6

12 Ton With Intelligent Electrical Box RGV Robot Transfer Cart 7

fatr manufacturer flat cars custom manufacture flat carts high speed rai
