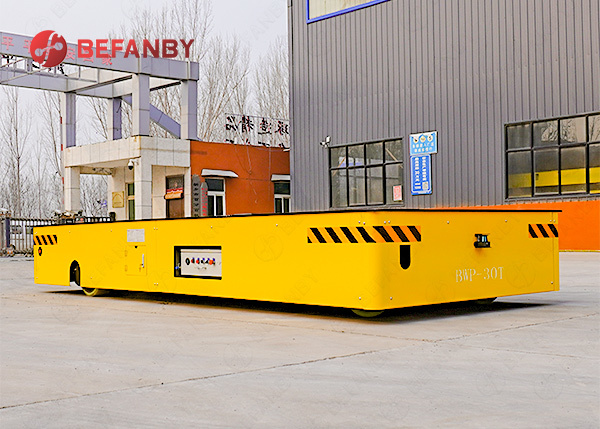

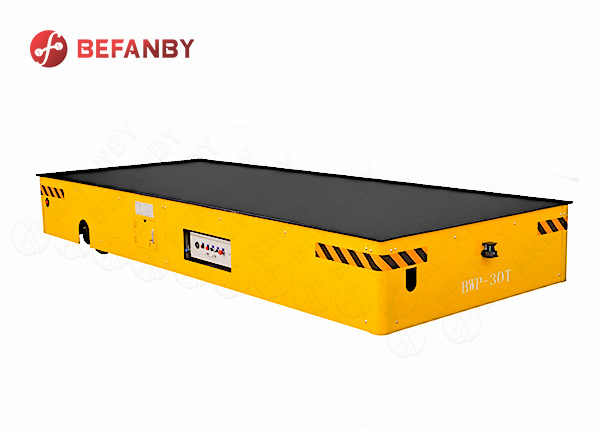

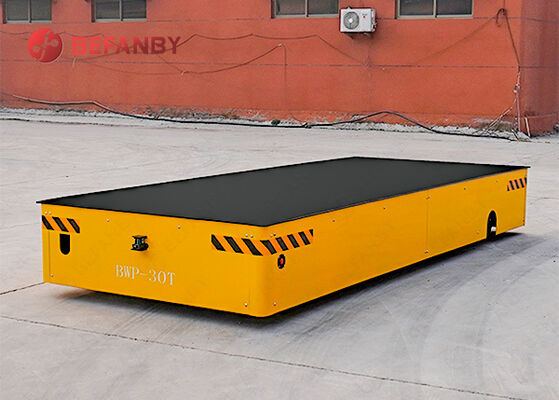

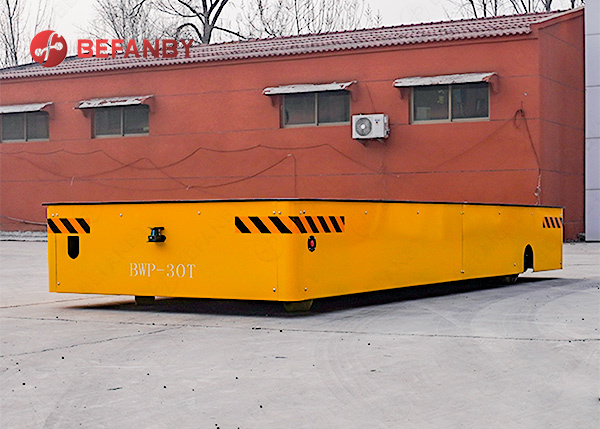

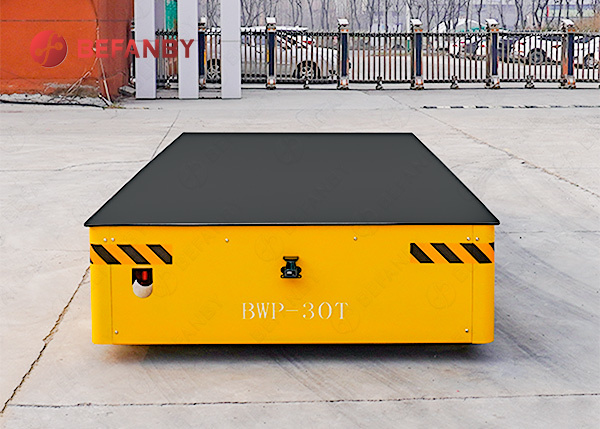

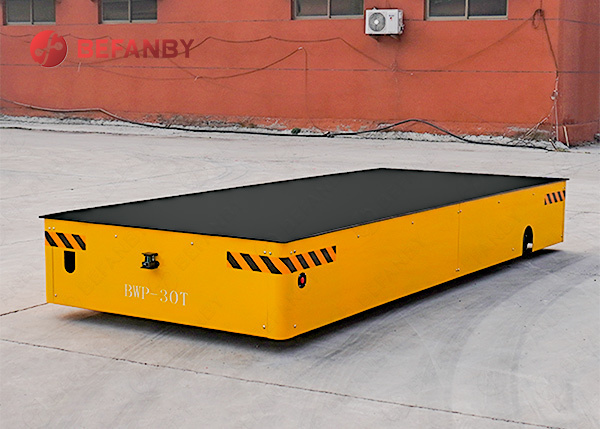

Customized 30T Capacity Trackless Transfer Carts
| Menşe yeri | Henan, Çin |
|---|---|
| Marka adı | BEFANBY |
| Sertifika | CE,SGS,ISO9001 |
| Model numarası | BWP |
| Min sipariş miktarı | 1 Takım/Takım |
| Ambalaj bilgileri | Demiryolu transfer arabası muşamba ile paketlenecek, parçalar yüksek kaliteli tahta sandıkta sevk ed |
| Teslim süresi | Her zamanki teslimat olarak 20-30 gün |
| Ödeme koşulları | L/C,T/T,Western Union |
| Yetenek temini | Yılda 1000 set/set |
Ürün ayrıntıları
| Malzeme | Q235 | Yük Kapasitesi | 1-70T |
|---|---|---|---|
| Güç Kaynağı | Pil Gücü | Tablo uzunluğu | 2000-5600mm |
| Masa genişliği | 1500-2500mm | Motor Gücü | 1-6,3 kW |
Ürün Açıklaması
Customized 30T Capacity Trackless Transfer Carts
1. Product Introduce
Trackless material transfer carts are material handling equipment that operate on hard surfaces without the need for tracks. They are widely used in industries such as machinery manufacturing, mold processing, steel metallurgy, and warehousing logistics. Powered by batteries and driven by motors, these vehicles can move forward, backward, and turn, allowing them to travel freely inside and outside factory buildings and meet the needs of transporting large-tonnage materials under various working conditions.
2. Advantage
Compared to traditional rail-mounted material handling equipment, trackless transport vehicles offer advantages such as flexible operating routes, small turning radius, and strong adaptability. These vehicles can move in multiple directions depending on the site environment, easily handling material transfers between workshops, production lines, and warehouses and processing areas, significantly improving internal logistics efficiency.
3. Technique Parameter
| Model | BWP-2t | BWP-5t | BWP-10t | BWP-16t | BWP-20t | BWP-25t | BWP-30t | BWP-40t | BWP-50t | BWP-63t | |
| Rated load | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | |
| Table size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | |
| Height(H) | 450 | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 750 | |
| Wheel Base | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | |
| Rail Inner Gauage | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | |
| Wheel Diameter | 270 | 300 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | |
| Running Speed | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | |
| Motor Power | 1 | 1.2 | 1.6 | 2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | |
| Transformer Power | 3 | 5 | 5 | 6.8 | 6.8 | 6.8 | 10 | 10 | 10 | 20 | |
| Transformer Quatity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Running Distance | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 60 | 50 | 50 | |
| Max Wheel Load | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | |
| Reference Weight | 2.8 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | |
4.Support Customized
In terms of structural design, the trackless transport vehicle adopts a high-strength steel thickened steel plate structure frame, which has a strong load-bearing capacity and stable and reliable operation. The load capacity can be customized according to customer needs, ranging from a few tons to hundreds of tons. At the same time, the vehicle body size, platform type, drive method and control system can all be customized to meet the transportation requirements of different materials and working conditions.
5.BEFANBY Client
6.Our Company
7.FAQ
1) Q: How can I operate the transfer cart ?
A: Please don't worry, dear friend. The English user manual, parts manual will be delivered with your items together.
2) Q: How to ensure your product quality ?
A : We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary,our installation engineer will go to your factory to guide the installation.
3)Q: Whether you can offer customized transfer car?
A: Yep, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
4)Q: Whether there is professional technician assist our installation?
A :Yep. We have professional installation team, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in advance. So that we can arrange technicians.
