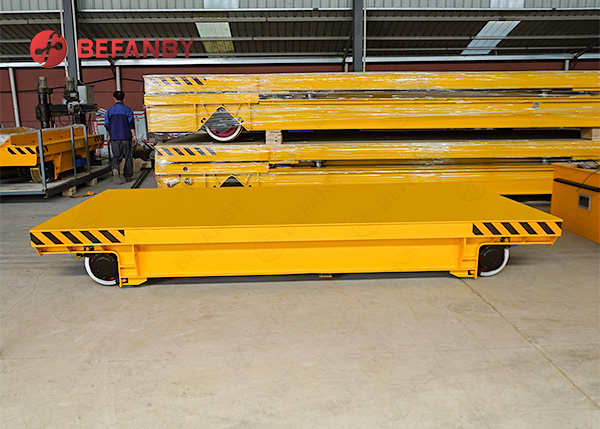

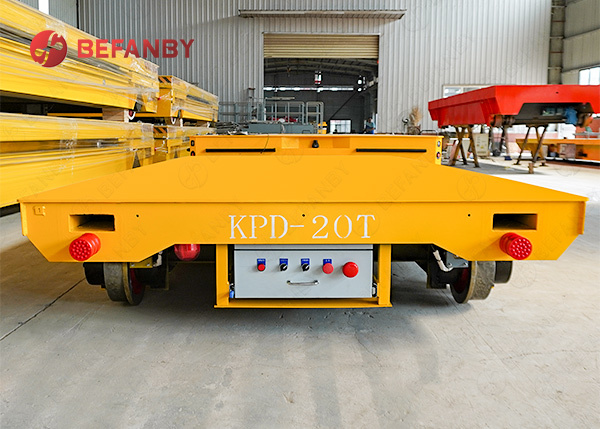

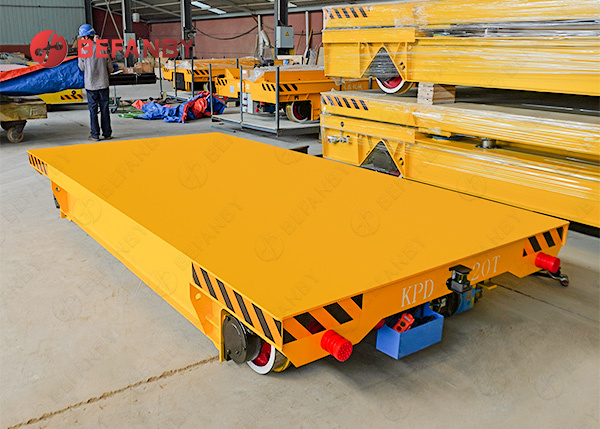

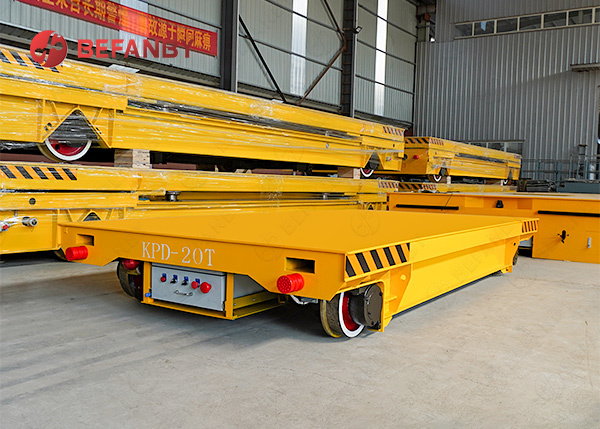

20T Rail Cast Steel Forging Factory Wheel Operated Transfer Cart
| Place of Origin | Henan,China |
|---|---|
| Marka adı | BEFANBY |
| Sertifika | CE,SGS,ISO9001 |
| Model Number | lift platform |
| Minimum Order Quantity | 1 set/sets |
| Fiyat | Anlaşılabilir |
| Packaging Details | The movable lifting platform will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 20-30 days as usual delivery |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 1500 set/sets, per year |
Ücretsiz numune ve kuponlar için bana ulaşın.
Naber:0086 18588475571
sohbet: 0086 18588475571
Skype: sales10@aixton.com
Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.
xÜrün ayrıntıları
| Color | Customized | Warranty | 24 months |
|---|---|---|---|
| Load capacity | Customized | Power supply | Battery Operated |
| Port | Qingdao/Tianjin/Shanghai | Application | aerial working,factory,workshop,construction site |
| Materials | Steel |
Ürün Açıklaması
20T Rail Cast Steel Forging Factory Wheel Operated Transfer Cart
Product Description
The low-voltage rail transfer cart is a type of rail transport equipment that draws power from a safe 36V or 48V rail voltage, ensuring stable operation. Operating on routes with low-voltage rails, the vehicle is suitable for various work environments, such as workshops, production lines, and factory storage systems, ensuring the smooth transportation of large tonnages of materials. Its sturdy structure and strong load-bearing capacity ensure the equipment is noiseless and pollution-free during operation, making it particularly suitable for workplaces with frequent and prolonged use.
Product Details
The transfer cart consists primarily of core components such as a frame, drive system, control system, and low-voltage power supply. It supports long-distance operations and transports across a variety of complex, intersecting routes. It also offers excellent safety features and can operate in high-temperature environments. Its high-performance system ensures long-term operation.
Product Parameter
| Model | KPX-10t | KPX-16t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-63t | KPX-80t | KPX-100t | KPX-150t | |
| Rated Load | 10 | 16 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table size | Length(L) | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 500 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauage | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter | 300 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
| Motor Power | 2 | 2.2 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | 15 | |
| Battery Capacity | 160 | 180 | 250 | 250 | 300 | 330 | 400 | 400 | 440 | 600 | |
| Battery Voltage | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Max Wheel Load | 42.6 | 64.5 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Reference Weight | 4.2 | 5.5 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 | |
Product Feature
Product Advantages
1. Safe Power Supply: Utilizes a 36V low-voltage rail power supply, ensuring safe operation for both personnel and equipment.
2. Stable and Efficient: Excellent continuous operation performance, suitable for medium and long-distance transport needs.
3. Easy Maintenance: Simple structure, easy component replacement and maintenance, reducing ongoing O&M costs.
4. Energy-Saving and Environmentally Friendly: No exhaust emissions are generated during operation, and no battery charging or replacement is required, resulting in energy-saving and high efficiency.
5. Intelligent Control: Can be integrated with an automated control system, with optional remote control or joystick operation for improved transport efficiency.
Our Company
Support Customized
We offer comprehensive custom services tailored to your specific application and operational needs. We can customize the following:
* Table dimensions (extended width and length)
* Load capacity (1-100 tons)
* Additions of special features such as coil V-racks, hydraulic or scissor lifts, and tilting systems
* Custom exterior colors and logos
* Structural reinforcement and material selection for special environments (high temperature, explosion-proof, and dust-proof)
Related Products
Our After Service
- Our commitment:
- The load bearing safety factor of the trolley is no less than 120%.
- Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material
- 16 hours engineering service and 24 hours internet service for our customers
- During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
- Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
Product Tap: Material Handling Cart , Rail Transfer Cart
