1.5T Mecanum Wheel With PLC Control Steerable Automatci Guided Vehicle

Menşe yeri	Henan, Çin
Marka adı	BEFANBY
Sertifika	CE,SGS,ISO9001
Model numarası	AGV
Min sipariş miktarı	1 set/set
Fiyat	Anlaşılabilir
Ambalaj bilgileri	Transfer arabası muşamba tarafından paketlenecek, parçalar yüksek kaliteli ahşap kasa olarak paketle
Teslim süresi	Her zamanki teslimat olarak 20-30 gün
Ödeme koşulları	L/C, T/T, Western Union
Yetenek temini	Yıllık 1500 set/set

Ücretsiz numune ve kuponlar için bana ulaşın.

Naber:0086 18588475571

sohbet: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

Ürün ayrıntıları

Renk	Özelleştirilmiş	Garanti	24 ay
Yük kapasitesi	Özelleştirilmiş	Güç kaynağı	Pil çalıştırıldı
Liman	Qingdao/Tianjin/Shanghai	Başvuru	Ağır endüstri, dış mekan, inşaat
Malzeme	çelik

Mesaj bırakın

Ürün Açıklaması

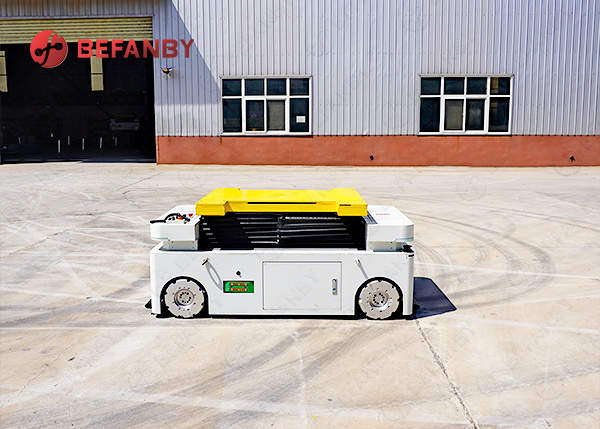

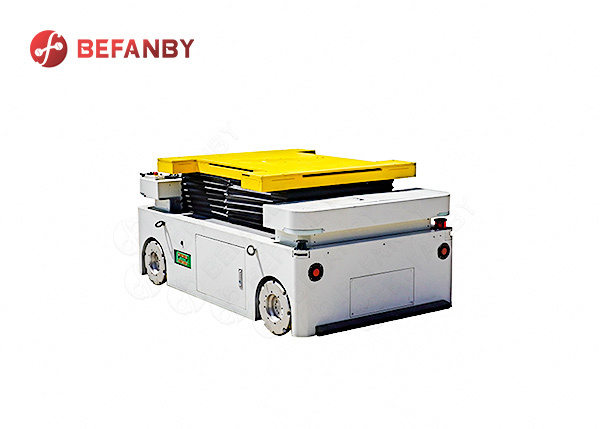

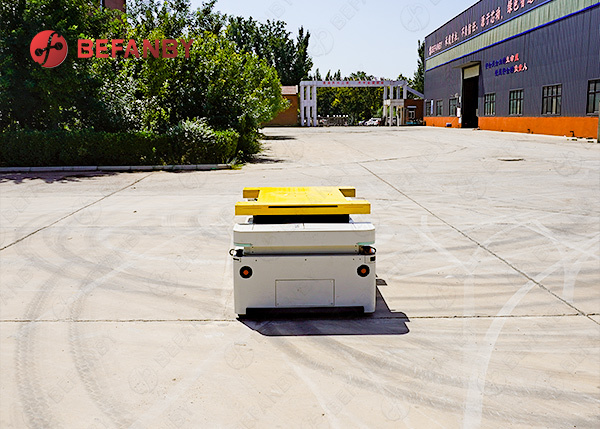

1.5T Mecanum Wheel With PLC Control Steerable Automatci Guided Vehicle

Product Description

The 1.5-ton Intelligent AGV (Automated Guided Vehicle) is a material handling vehicle that integrates automation, intelligence, and efficient operation, designed specifically for the transfer needs of modern production workshops.

This trackless AGV utilizes an intelligent navigation system (optional magnetic stripe, laser, or QR code navigation). It maintains high surface requirements and can autonomously navigate and precisely align itself on hard, indoor and outdoor factory surfaces, enabling unmanned handling and flexible scheduling. Its compact design and 1.5-ton load capacity make it suitable for the rapid transfer of various small and medium-sized workpieces, molds, pallets, and components.

1.5T Mecanum Wheel With PLC Control Steerable Automatci Guided Vehicle 0

Company Profile

1.5T Mecanum Wheel With PLC Control Steerable Automatci Guided Vehicle 1

1.5T Mecanum Wheel With PLC Control Steerable Automatci Guided Vehicle 2

1.5T Mecanum Wheel With PLC Control Steerable Automatci Guided Vehicle 3

Support Customized

1.5T Mecanum Wheel With PLC Control Steerable Automatci Guided Vehicle 4

Product Parameter

Model		KPX-10t	KPX-16t	KPX-25t	KPX-30t	KPX-40t	KPX-50t	KPX-63t	KPX-80t	KPX-100t	KPX-150t
Rated Load		10	16	25	30	40	50	63	80	100	150
Table size	Length(L)	3600	4000	4500	4500	5000	5500	5600	6000	6500	10000
	Width(W)	2000	2000	2200	2200	2500	2500	2500	2600	2800	3000
	Height(H)	500	550	600	600	650	650	700	800	900	1200
Wheel Base		2600	2800	3200	3200	3800	4200	4300	4700	4900	7000
Rail Inner Gauage		1435	1435	1435	1435	1435	1435	1435	1800	2000	2000
Wheel Diameter		300	350	400	400	500	500	600	600	600	600
Wheel Quantity		4	4	4	4	4	4	4	4	4	8
Ground Clearance		50	50	50	50	50	50	75	75	75	75
Running Speed		25	20	20	20	20	20	20	20	20	18
Motor Power		2	2.2	3.5	4	5	6.3	8	10	15	15
Battery Capacity		160	180	250	250	300	330	400	400	440	600
Battery Voltage		48	48	48	48	48	48	48	72	72	72
Max Wheel Load		42.6	64.5	94.5	110.4	142.8	174	221.4	278.4	343.8	265.2
Reference Weight		4.2	5.5	6.5	6.8	7.6	8	10.8	12.8	14.6	26.8

Product Feature

The drive system utilizes a high-performance DC motor and battery pack, ensuring long-lasting battery life. It also features an automatic charging station for automatic charging. The vehicle is equipped with multiple safety features, including radar obstacle avoidance, laser scanning, and a safety collision buffer, ensuring stable and reliable operation.

The platform can be optionally equipped with roller conveyors, chain loading, or hydraulic lifting devices, enabling seamless integration with production lines, turntables, and other intelligent equipment. The entire vehicle supports MES system integration, enabling information management and remote monitoring.

1.5T Mecanum Wheel With PLC Control Steerable Automatci Guided Vehicle 5

Applications

Equipment transportation for oil refineries

Transfer of chemical raw materials and parts

Transport of circular pipe components and high-temperature workpieces

Logistics transportation and warehouse storage

Shipping

1.5T Mecanum Wheel With PLC Control Steerable Automatci Guided Vehicle 6

Related Products

1.5T Mecanum Wheel With PLC Control Steerable Automatci Guided Vehicle 7

FAQ

1) Q: How can I operate the transfer cart ?
A: Please don't worry, dear friend. The English user manual, parts manual will be delivered with your items together.
2) Q: How to ensure your product quality ?
A : We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary,our installation engineer will go to your factory to guide the installation.
3)Q: Whether you can offer customized transfer car?
A: Yep, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
4)Q: Whether there is professional technician assist our installation?
A :Yep. We have professional installation team, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in advance. So that we can arrange technicians.
