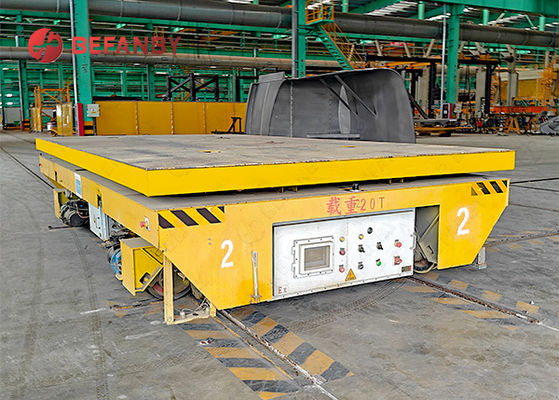

Long Lifetime Electrical Operated Hydraulic Lift Rail Transfer Cart with Customized Load Capacity
| Menşe yeri | Henan, Çin |
|---|---|
| Marka adı | BEFANBY |
| Sertifika | CE,SGS,ISO9001 |
| Model numarası | KPJ |
| Min sipariş miktarı | 1 set/set |
| Fiyat | Anlaşılabilir |
| Ambalaj bilgileri | Transfer arabası muşamba tarafından paketlenecek, parçalar yüksek kaliteli ahşap kasa olarak paketle |
| Teslim süresi | Her zamanki teslimat olarak 20-30 gün |
| Ödeme koşulları | L/C,T/T,Western Union |
| Yetenek temini | Yıllık 1500 set/set |
Ücretsiz numune ve kuponlar için bana ulaşın.
Naber:0086 18588475571
sohbet: 0086 18588475571
Skype: sales10@aixton.com
Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.
xÜrün ayrıntıları
| Renk | Özelleştirilmiş | Garanti | 24 ay |
|---|---|---|---|
| Yük kapasitesi | Özelleştirilmiş | Güç Kaynağı | Pil çalıştırıldı |
| Liman | Qingdao/Tianjin/Shanghai | Uygulama | Fabrika, atölye, bina inşaatı, temizlik penceresi |
| Malzemeler | Çelik | ||
| Vurgulamak | Long Lifetime Rail Transfer Cart,Electrical Operated Battery Transfer Cart,Customized Load Capacity Hydraulic Lift Cart |
||
Ürün Açıklaması

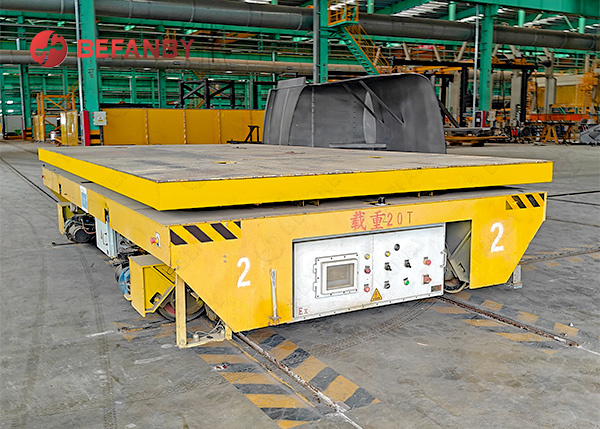

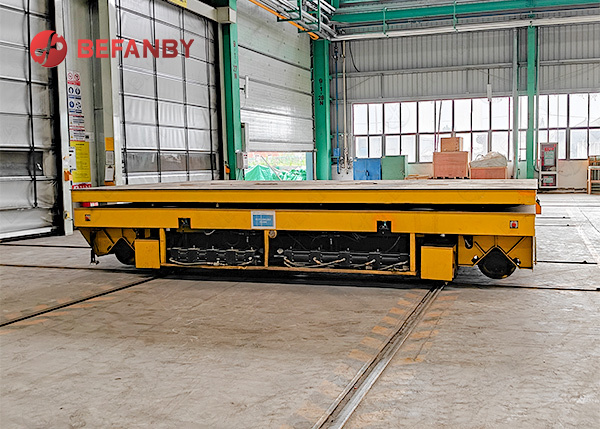

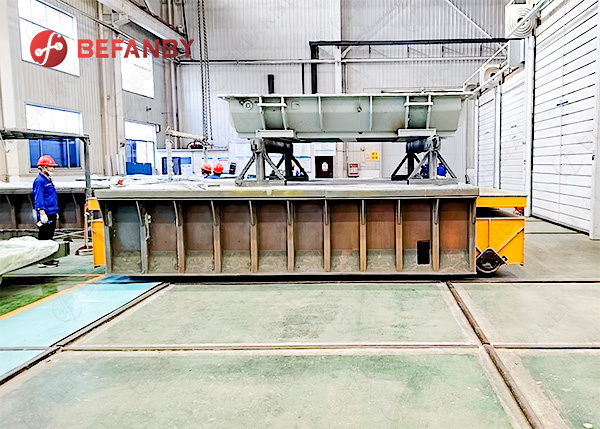

Long Lifetime Electrical Operated Hydraulic Lift Rail Transfer Carts
Product Description
The hydraulic lifting rail transfer cart is a highly efficient material handling equipment integrating intelligent control, hydraulic lifting, and multi-directional transportation. This uniquely designed cart can operate flexibly in different track directions. By switching between dual sets of wheels, it achieves free conversion between longitudinal and lateral tracks, greatly improving the efficiency and flexibility of logistics within the workshop.
Product Details
Main Structural and Functional Features
- Dual Wheel Set Switching Design: The vehicle is equipped with two independent walking wheel systems. The longitudinal and transverse wheel sets automatically switch between each other via a hydraulic system, enabling seamless connection to tracks in different directions.
- Hydraulic Lifting Platform: A high-performance hydraulic lifting device is installed in the center of the vehicle body, automatically adjusting the platform according to the workstation height for precise connection to production lines.
- High Load-Bearing Capacity Structural Design: Utilizing a thickened welded steel structure, the vehicle boasts a high overall load-bearing capacity. Load capacities can be customized (1 ton to 100 tons) to meet various requirements.
Product Parameters
| Product Name | Model No. | Power Supply Mode | Load Capacity | Other Items | Usage |
|---|---|---|---|---|---|
| Rail Transfer Cart | KPD | Conductor Rail | 1-300ton (customizable) | Running distance | Steel plate, workpiece, equipment, coil, column, ladle |
| Battery Powered Transfer Car | KPX | Battery | 1-100t | Using frequency | Working shop |
| Motorized Transfer Trolley | KPJ | Cable Drum | 1-100t | Running distance | Working shop |
| Busbar Powered Handling Cart | KPC | Busbar | 1-100t | Working shop | Working shop |
Product Features
Multiple Power Supply Options: Depending on the operating environment, multiple power supply options are available, including cable reels, low-voltage rails, batteries, or mobile cable chains, to meet different workshop layout needs.
Applications
Company Profile
Related Products
FAQ
1) Q: How can I operate the transfer cart?
A: The English user manual and parts manual will be delivered with your items.
2) Q: How to ensure your product quality?
A: We provide rail installation drawings, rail foundation construction drawings, and free technical guidance. If necessary, our installation engineer will visit your factory to guide the installation.
3) Q: Whether you can offer customized transfer car?
A: Yes, we are manufacturers with our own engineering team who can create customized designs according to your requirements.
4) Q: Whether there is professional technician assist our installation?
A: Yes. We have professional installation teams who have worked in many countries. Please let us know in advance if you need technical assistance.
