Professional Rail Transport Carts With Roller Convey
| Menşe yeri | Henan, Çin |
|---|---|
| Marka adı | BEFANBY |
| Sertifika | CE,SGS,ISO9001 |
| Model numarası | KPT |
| Min sipariş miktarı | 1 Takım/Takım |
| Fiyat | Anlaşılabilir |
| Ambalaj bilgileri | Elektrikli düz otomobil fabrikası muşamba tarafından paketlenecek, parçalar yüksek kaliteli ahşap ka |
| Teslim süresi | Her zamanki teslimat olarak 40-50 gün, acil teslimat için 30-40 gün |
| Ödeme koşulları | L/C,T/T,Western Union |
| Yetenek temini | Yılda 1000 set/set |
Ürün ayrıntıları
| Malzeme | Q235 | Koşu Hızı | 0-20 m/dak |
|---|---|---|---|
| Yük Kapasitesi | 1-1000T | Güç kaynağı | Mobil Makara |
| Operasyon türü | El asılı + uzaktan kumanda | Tekerlek malzemesi | Yalıtımlı |
Ürün Açıklaması

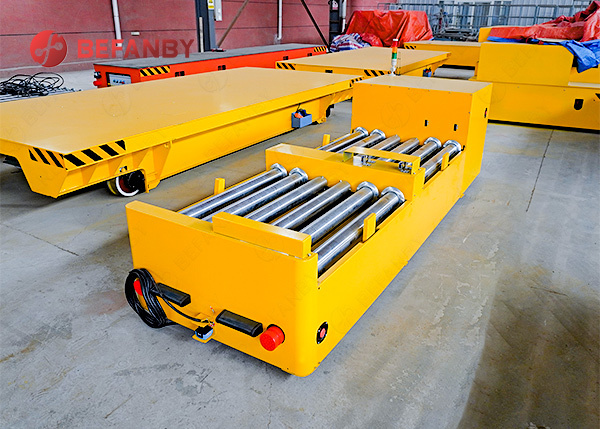

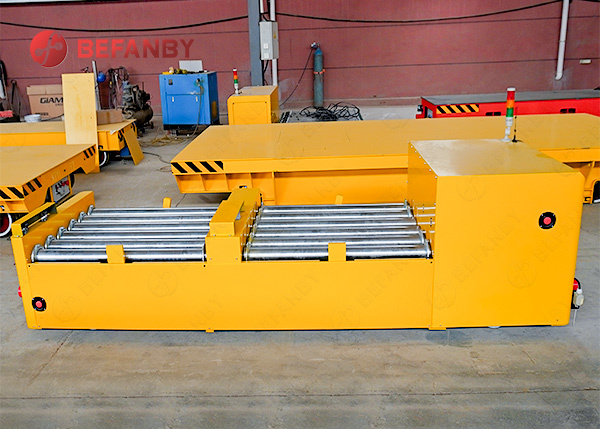

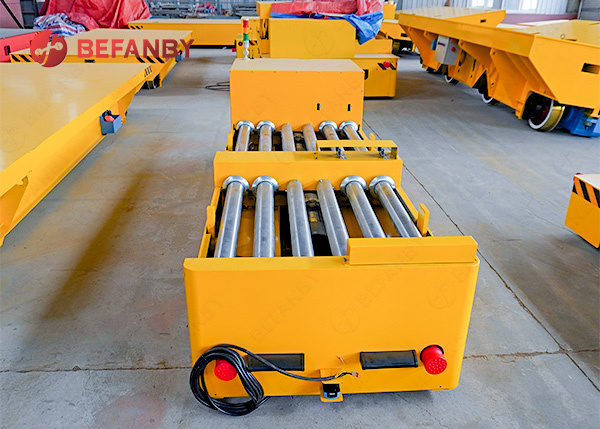

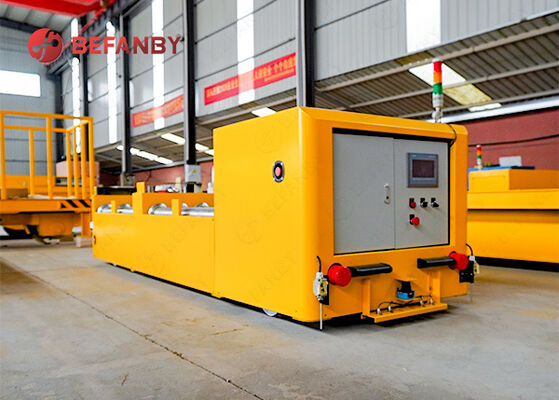

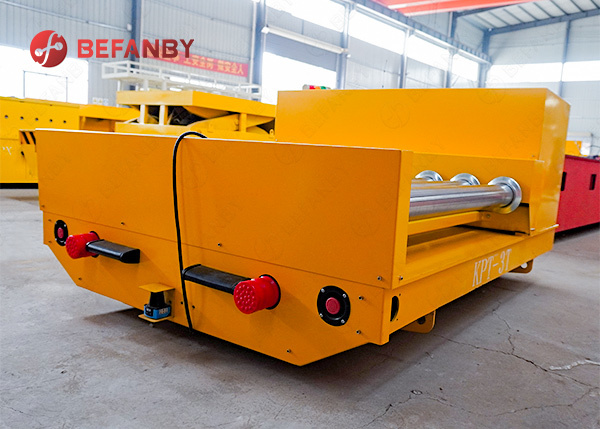

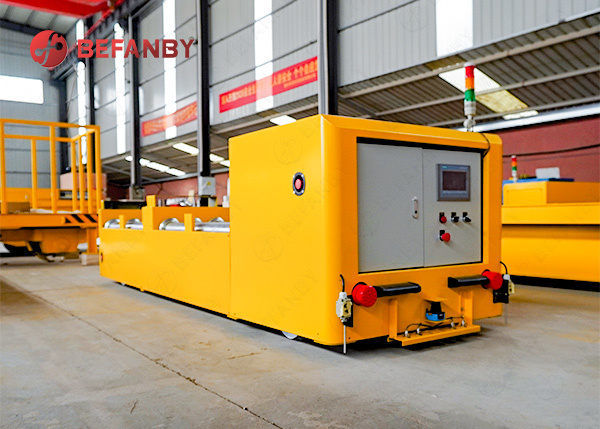

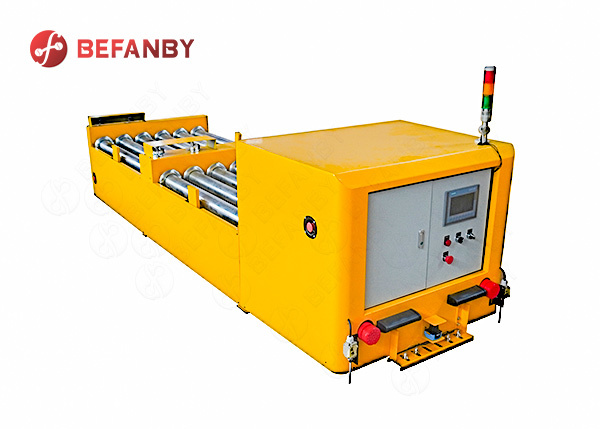

Professional Rail Transport Carts With Roller Convey
1. Product Introduce
1. Seamless Integration with Production Lines for Enhanced Conveying Efficiency
The platform features a roller conveyor design that integrates seamlessly with production lines, assembly lines, automated factory systems, and lifting platforms. This eliminates manual handling steps and boosts material turnover efficiency, making it ideal for continuous, automated production environments.
2. Smooth Conveying Ensures Material Safety
The roller system ensures stable movement of workpieces during loading and unloading, minimizing impact and friction. This effectively protects workpiece surfaces and is particularly suitable for transporting heavy or precision items such as molds, steel plates, pallets, and containers.
3. Increased Efficiency and Reduced Production Costs
By combining the electric rail transfer cart with the roller conveyor system, the unit enables automated material loading, transport, and unloading. This reduces the need for manual handling and lowers labor intensity, ultimately enhancing the enterprise's overall production efficiency.
4. Support for Customization
Specifications—including roller length and width, roller material and spacing, drive mechanism, and cart dimensions and color—can be tailored to the customer's specific site conditions. Additional features such as positioning devices, lifting mechanisms, weighing systems, and safety guardrails can also be integrated to meet diverse production requirements.
2. Technique Parameter
| Model | KPD-2t | KPD-5t | KPD-10t | KPD-16t | KPD-20t | KPD-25t | KPD-30t | KPD-40t | KPD-50t | KPD-63t | |
| Rated load | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | |
| Table size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | |
| Height(H) | 450 | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 750 | |
| Wheel Base | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | |
| Rail Inner Gauage | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | |
| Wheel Diameter | 270 | 300 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | |
| Running Speed | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | |
| Motor Power | 1 | 1.2 | 1.6 | 2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | |
| Transformer Power | 3 | 5 | 5 | 6.8 | 6.8 | 6.8 | 10 | 10 | 10 | 20 | |
| Transformer Quatity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Running Distance | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 60 | 50 | 50 | |
| Max Wheel Load | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | |
| Reference Weight | 2.8 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | |
3.Applications
- Material transfer and conveyance on automated production lines
- Docking of large-scale equipment in smart manufacturing plants
- Transport of molds, steel structures, and heavy workpieces
- Warehouse logistics systems and automated storage and retrieval system (AS/RS) distribution
- Industries such as automotive manufacturing, machining, metallurgy, and component transport
- Material transfer between semi-automated workshops, flow lines, and assembly lines
4.Exported Company
Features an integrated roller conveyor system on the deck for rapid material loading and unloading.
Offers a range of power supply options—such as battery, low-voltage rail, conductor rail, cable reel, or cable drag chain—to suit specific operating conditions.
Supports multiple operation modes, including remote control and handheld pendants, configurable based on the required level of automation.
Utilizes a high-strength box-girder frame structure, ensuring high load-bearing capacity and smooth operation to meet material transport needs across various tonnage requirements.
5.FAQ
1) Q: How can I operate the transfer cart ?
A: Please don't worry, dear friend. The English user manual, parts manual will be delivered with your items together.
2) Q: How to ensure your product quality ?
A : We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary,our installation engineer will go to your factory to guide the installation.
3)Q: Whether you can offer customized transfer cart?
A: Yep, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
4)Q: Whether there is professional technician assist our installation?
A :Yep. We have professional installation team, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in advance. So that we can arrange technicians.
